Squealing brakes, reduced stopping power, or visible wear on your brake pads? It’s time for brake pad replacement. Brake pad replacement is one of the most essential maintenance tasks you can do yourself, and it’s more straightforward than you might think. This brake pad replacement guide walks you through the entire process—from preparation to final safety checks—so you can get your motorcycle stopping like new.
Whether you’re riding a cruiser, sport bike, or adventure motorcycle, the fundamental process is the same. By the end of this article, you’ll understand exactly what tools you need, how to remove worn pads, install new ones, and verify everything is working safely.
Why Brake Pad Replacement Matters
Your brake pads are the critical component between your brake system and the road. Over time, friction wears them down—typically after 15,000 to 30,000 miles, depending on your riding style and brake type. According to Motorcycle.com’s article on brake maintenance, worn pads reduce stopping power, increase stopping distance, and can damage your rotors if ignored.
Early warning signs include:
- Audible squealing or grinding when braking
- Spongy brake lever feel
- Brake warning light on your dashboard
- Visible pad wear (less than 2mm of friction material remaining)
Replacing pads before they’re completely worn protects your brake rotors from costly damage. A fresh set of pads costs $30–$100, while replacing rotors adds $100–$300 to the bill.

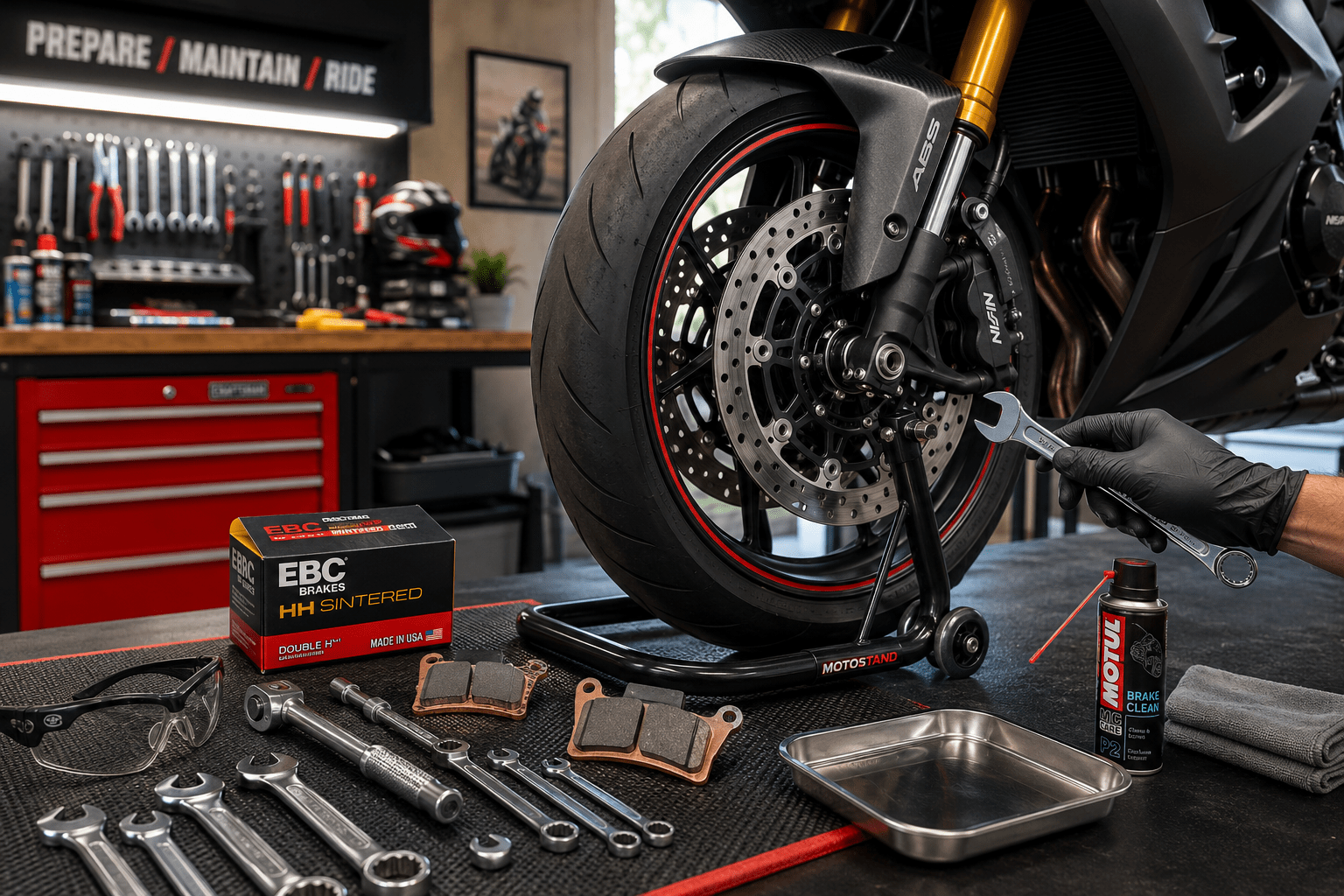

Tools and Materials You’ll Need
Essential tools:
- Wrench set (typically 8mm–12mm depending on your bike’s caliper bolts)
- Allen keys (if your bike uses hex bolts on the caliper)
- Brake pad spreader or old pad (to prevent the piston from accidentally extending too far)
- Jack and paddock stand (to safely support your motorcycle)
- Socket set (for wheel removal, if needed)
- Wire brush or small file (to clean caliper surfaces)
- Brake cleaner (optional but recommended)
Materials to have on hand:
- Replacement brake pad set (ensure they match your bike’s make/model and riding style)
- Clean rags or shop towels
- Safety glasses
- Gloves (brake dust contains asbestos in older pads—protect yourself)
Pro tip: Check your motorcycle’s owner’s manual for specific caliper designs and torque specifications before starting. Different brands (Brembo, Nissin, etc.) have slight variations in design.
Step 1: Prepare Your Workspace and Motorcycle
Safety first. Working on brakes requires your full attention and a secure setup.
Step-by-step:
- Park on a level surface and ensure your motorcycle is secure. Use a center stand if available; if not, position a jack and paddock stand under the frame.
- Let brakes cool if you’ve recently ridden. Hot brake components can burn you.
- Secure the motorcycle with the paddock stand placed under the frame (not the fairing). Double-check it won’t shift while you work.
- Remove the wheel only if your brake caliper design requires it. Many bikes allow pad replacement without wheel removal—check your manual first.
- Lay out tools and materials within arm’s reach. Organization prevents mistakes and lost fasteners.
- Put on safety glasses and gloves before handling any brake components.
Step 2: Inspect the Current Brake Pads
Before removing anything, understand what you’re working with.
Inspection steps:
- Locate the brake calipers. Front brakes typically sit on both sides of the front wheel; rear brakes are mounted near the rear wheel or driven wheel.
- Look for the brake pad wear indicator. Most pads have a metal pin or groove that marks minimum thickness. If pads are flush with this mark, it’s absolutely time to replace them.
- Measure pad thickness with calipers if possible. Healthy pads are 3–5mm thick. Below 2mm, they must be replaced.
- Check for uneven wear. If one pad is thinner than the other, your caliper may be misaligned—address this after pad replacement if the problem persists.
- Inspect the rotor for damage, scoring, or glazing (shiny, hardened surface). If the rotor is damaged, you’ll need a new one before installing new pads.
Red flags that indicate rotor replacement is needed:
- Deep grooves or scoring running across the rotor
- Glazed (shiny) surface that won’t grip new pads
- Rotor thickness below manufacturer specifications
- Visible cracks or warping

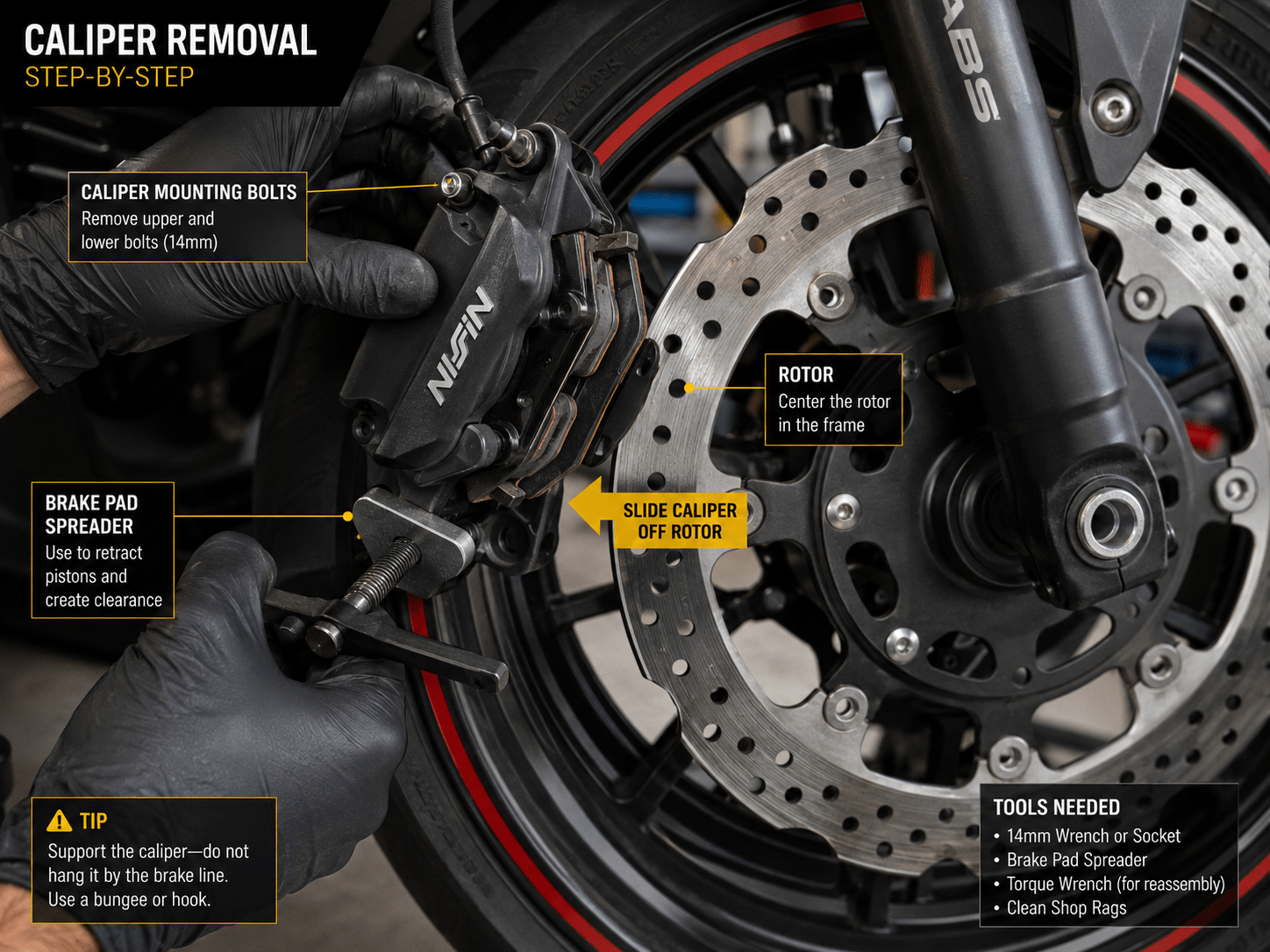

Step 3: Remove the Brake Caliper (Without Removing the Wheel)
Most modern motorcycles allow you to remove pads without dismounting the wheel. This saves time and keeps your work area cleaner.
Removal process:
- Locate the caliper bolts. These are typically 8mm to 12mm hex bolts securing the caliper to the fork (front) or swingarm (rear).
- Loosen the bolts by a quarter turn. Do not remove them fully yet—you’re just breaking the seal.
- Use a brake pad spreader or old brake pad to gently push the caliper pistons apart. This prevents the pistons from extending too far when you separate the caliper, which can cause air to enter the brake lines.
- Remove the bolts completely and carefully slide the caliper off the rotor. Support the caliper with a bungee cord or rag so it doesn’t hang by the brake line, which can damage the line.
- Rest the caliper gently on a clean surface. Do not allow it to dangle or come under tension.
Critical note: Never let the brake lever be pulled while the caliper is removed. If someone accidentally grabs the brake lever, the pistons will extend and you’ll have to bleed the brakes—a much longer job.
Step 4: Remove Old Brake Pads
Your brake pads sit in a pad carrier or brake pad holder inside the caliper. Removal is straightforward.
Removal steps:
- Inspect the pad carrier to understand how pads are held in place. Most use retaining pins, clips, or a sliding mechanism.
- Remove retaining pins or clips if present. These are usually held by a cotter pin or small fastener.
- Slide out the old brake pads from the pad carrier. They often come out as a pair (two pads per caliper).
- Examine the pad carrier for damage, dirt, or corrosion. Clean it with a wire brush and brake cleaner if it’s dirty.
- Inspect the caliper pistons (the metal cylinders that squeeze the pads against the rotor). They should be clean and move freely. If they’re sticky or corroded, apply a light coat of brake fluid and work them back and forth gently.
Safety note: Brake pads contain asbestos in some older motorcycles. Avoid inhaling dust. Wear a mask, use brake cleaner to wet down dust, and dispose of old pads properly.

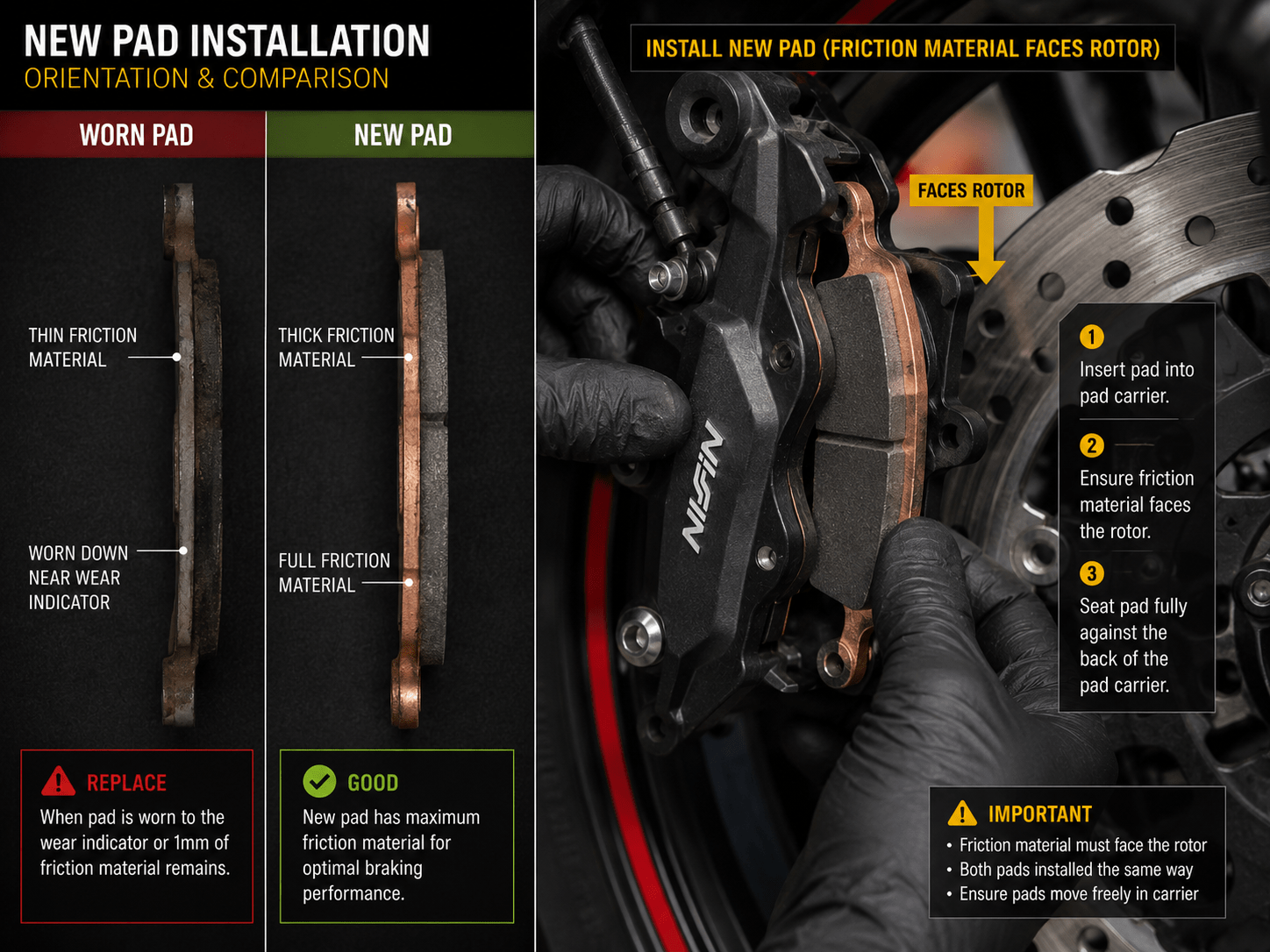

Step 5: Install New Brake Pads
Now the moment of truth. New pads are thicker and firmer than worn ones.
Installation process:
- Check your new brake pads against the old ones to ensure they’re the correct size and thickness. Compare the pad material (organic, sintered, semi-metallic) if you want to match the original specification.
- Insert the new pads into the pad carrier in the same orientation as the old ones. The friction material should face the rotor; the backing plate should face the caliper piston.
- Ensure pads are fully seated. They should not wiggle or rattle when tapped gently. If they’re loose, the retaining mechanism may need adjustment.
- Reinstall retaining pins or clips to lock the pads in place. Secure any cotter pins or fasteners.
- Double-check positioning by gently spinning the wheel (if still attached) and confirming the pads sit evenly on both sides of the rotor with equal spacing.
Pro tip: New pads often come with a thin protective coating to prevent corrosion during storage. This coating will wear off during your first few brake applications—don’t worry, this is normal.
Step 6: Reinstall the Brake Caliper
Your caliper is ready to go back on. This is where precision matters.
Reinstallation steps:
- Align the caliper with the rotor and the mounting holes on the fork or swingarm. Slide the caliper back onto the rotor, ensuring the rotor passes cleanly between the brake pads on both sides.
- Check alignment by spinning the wheel slowly. The rotor should pass through the caliper without rubbing on the pads. If it rubs, loosen the caliper bolts slightly and adjust until it spins freely.
- Insert the caliper bolts and tighten them by hand first. Get them snug but not fully tight yet.
- Torque the bolts to the manufacturer’s specification (typically 20–30 Nm for most motorcycles). Use a torque wrench to avoid over-tightening, which can crack the caliper or strip bolt threads.
- Final spin test: Gently rotate the wheel to confirm the rotor spins freely without rubbing.
Step 7: Bleed the Brakes (If Necessary)
Brake bleeding is often not necessary when replacing pads, but it becomes critical if:
- You pushed the caliper pistons too far and introduced air
- The caliper was disconnected for an extended period
- Your brake lever feels spongy or soft
Quick bleed procedure:
If you need to bleed your brakes, pull the brake lever firmly 10–15 times to pressurize the system. You may hear a “pop” or feel the lever firm up—this is air escaping. If the lever remains squishy after 20 pulls, you may need to perform a full brake bleed (see [INTERNAL LINK: /motorcycle-brake-fluid-guide “our brake fluid flushing guide”] for detailed instructions).
Step 8: Safety Checks Before Riding
Before you take your motorcycle out, verify everything is working correctly.
Safety checklist:
- Test brake lever feel with the motorcycle parked. The lever should feel firm, not spongy. Pull it several times—resistance should remain consistent.
- Spin the wheel (by hand) to ensure the rotor doesn’t rub on the pads.
- Rock the motorcycle forward and backward on the brakes to simulate braking action. The brakes should hold without slipping.
- Check pad installation one more time. Look at the calipers to confirm new pads are seated evenly and the retaining clips are secure.
- Verify caliper bolts are tight. Use a wrench to give each bolt a final check.
- Test ride in a safe area (empty parking lot or quiet street) before riding normally. Apply brakes gently at low speed, then moderately at higher speed. New pads often require 100–200 miles of normal riding to fully bed in (reach maximum friction).
Step 9: Break-In Your New Brake Pads
New pads perform better after a short break-in period. This “bed-in” process ensures maximum contact between the pad material and rotor surface.
Break-in recommendations:
- For the first 100 miles: Avoid hard braking. Use gentle-to-moderate brake pressure.
- Apply brakes 10–15 times per mile at moderate pressure to distribute pad material evenly across the rotor.
- Avoid continuous hard braking (like riding down a long mountain). Let brakes cool between aggressive stops.
- Monitor feel: After 100 miles, your brakes should feel firmer and more responsive.
Some riders notice slightly reduced braking power during the first ride—this is normal and temporary. The pads and rotor will reach optimal performance after 200 miles of mixed riding.
Troubleshooting Common Brake Pad Issues
Even after installation, problems can arise. Here’s how to diagnose and fix them.
Brake Pads Still Squealing After Replacement
Causes:
- Dust or debris between pad and rotor
- Improper pad-to-rotor alignment
- Worn or glazed rotor
- Wrong pad compound for your bike
Solutions:
- Clean the rotor and caliper with brake cleaner
- Verify caliper alignment and retighten bolts
- Inspect the rotor for glazing; if severely glazed, replace it
- Consider switching to sintered (metal) pads if your bike tends to squeal with organic pads
Brake Lever Feels Spongy
Causes:
- Air in the brake lines
- Pistons extended too far during installation
- Brake fluid leak
Solutions:
- Bleed the brakes by repeatedly pulling the brake lever (10–20 times)
- Perform a full brake bleed if the spongy feeling persists
- Inspect brake lines and connections for leaks
Uneven Brake Pad Wear
Causes:
- Caliper piston stuck on one side
- Rotor misalignment
- Brake line restriction
Solutions:
- Clean caliper pistons and apply a light coat of brake fluid to free them
- Check rotor flatness with a straightedge
- Inspect brake hoses for kinks or damage
Brakes Feel Weak After Replacement
Causes:
- Pads not bedded in (most common)
- Wrong pad type installed
- Rotor thickness below specifications
- Air in the brake system
Solutions:
- Complete the break-in process (100–200 miles of moderate braking)
- Verify you installed the correct pad type
- Measure rotor thickness; if below minimum, replace it
- Bleed the brakes to remove air
FAQ
How often should I replace my motorcycle brake pads?
Brake pad lifespan depends on riding style, brake type, and road conditions. Most riders replace pads every 15,000–30,000 miles. Aggressive braking (sport riding, heavy traffic) shortens pad life; smooth, gradual braking extends it. Check pads annually during routine maintenance.
Can I replace just one brake pad?
No. Always replace pads in complete sets—both pads per caliper. Replacing only one pad causes uneven wear and reduces braking performance. Single-pad replacement is false economy and unsafe.
What’s the difference between organic, sintered, and semi-metallic brake pads?
Organic pads (carbon-based): Quieter, better modulation, fade at high temperatures. Ideal for street riding. Wear faster than metal-based pads.
Sintered (metal) pads (copper/bronze): Excellent heat tolerance, consistent performance, longer lasting. Slightly noisier. Best for sport riding and track use.
Semi-metallic pads (mix): Balance of performance and longevity. Good for all-around riding.
Choose based on your riding style. Check your motorcycle’s manual for recommended compounds.
Do I need to replace the rotor when replacing brake pads?
Only if the rotor is damaged, glazed, or worn below the manufacturer’s minimum thickness. A healthy rotor can last two to three pad replacements. Inspect carefully during pad replacement, and replace it if you notice deep scoring, cracks, or warping.
How long does brake pad replacement take?
Expect 1–2 hours for a first-time job, including setup, inspection, and break-in testing. Experienced riders complete it in 30–45 minutes. Take your time—rushing leads to mistakes.
Can I replace motorcycle brake pads without special tools?
Basic hand tools (wrench, Allen keys, jack) are sufficient for most motorcycles. A torque wrench ensures proper tightening (highly recommended to avoid damage). Brake fluid and cleaner are helpful but not essential for simple pad replacement. Avoid improvising on brake-related work—proper tools matter for safety.
Key Takeaways
Replacing motorcycle brake pads is a manageable DIY task that saves you $100–$200 in labor costs. By following this step-by-step guide, you’ll ensure:
- Safe braking performance on every ride
- Extended rotor life by catching worn pads early
- Confidence in your motorcycle’s condition
- Quick maintenance cycles once you’ve done it once
The key is patience, cleanliness, and attention to detail. Take your time inspecting components, use proper tools, and always verify your work before riding. Your brakes are too important to rush.
Ready to tackle the next maintenance task? Check out our brake fluid flushing guide to learn how to keep your entire brake system in top condition. And download our complete maintenance checklist to stay on top of all routine tasks.
